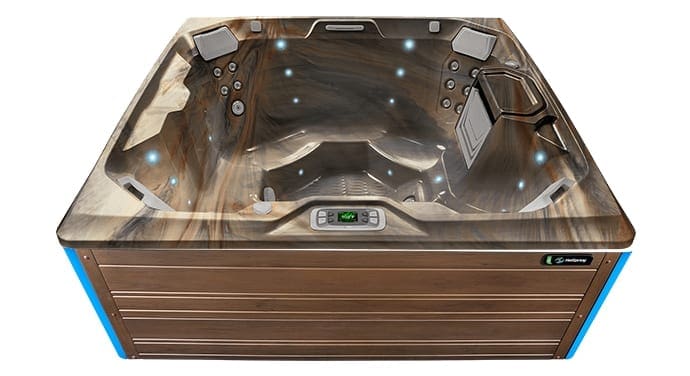

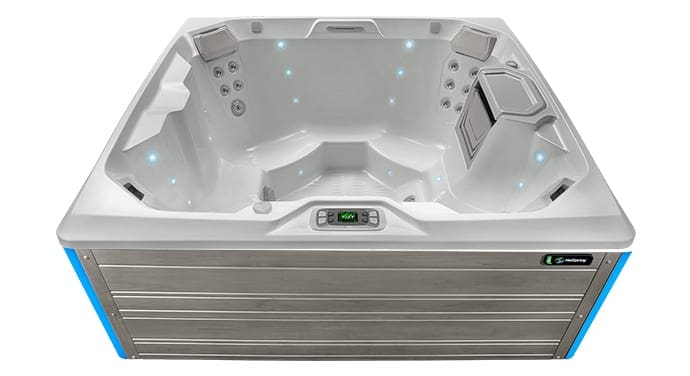

Beam
Seating Capacity 4
Water Capacity 310 US gal
Dimensions 6’ 8” x 6’ 8” x 33”
Showrooms:
Ideal for tighter spaces, the Beam has a smaller footprint but still provides spacious seating for four people. Each corner seat features a different hydrotherapy option and the large footwell is an added bonus in this spa’s roomy interior.
Specifications
Control System
IQ 2020® with LCD control panel
230v/50amp
60Hz Includes G.F.C.I. protected sub-panel or
115v/20amp
60Hz includes G.F.C.I. protected power cord
Jet Count 19
Jets
1 XL Directional jet
2 Standard Single Rotary jets 2 Standard Directional jets 14 Directional Precision jets
(All with w/ Brushed Stainless Steel Trim)
Lighting System
Raio® multi-color interior points of light (30) Exterior multi-color lighting with timer
Pumps
Wavemaster® 9000 One-Speed 2.5 HP, continuous duty 5.2 HP, breakdown torque or Wavemaster 7000 One-Speed 1.65 HP, continuous duty 3.5 HP, breakdown torque
Heater
No-Fault®, 4,000w/230v or 1,500w/115v
Ozone System
FreshWater® III Corona Discharge
Hot Tub Cover Lifter (Optional)
CoverCradle®, CoverCradle II, Lift ‘n Glide® or UpRite®
Circulation Pump
SilentFlo 5000® for quiet, continuous ltration
Effective Filtration Area
100 sq. ft., top-loading liters
Energy Efficiency
FiberCor® insulation; Certi ed to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law
Dry Weight
700 lbs.
Filled Weight
3,820 lbs.
Cover Options
3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal
Cover Color
Black
Shell Colors: Tuscan Sun, Alpine White, Desert, Ice Grey, Platinum
Cabinet Colors: Coastal Gray, Sable, Espresso
- Description
-
Ideal for tighter spaces, the Beam has a smaller footprint but still provides spacious seating for four people. Each corner seat features a different hydrotherapy option and the large footwell is an added bonus in this spa’s roomy interior.
- Specifications
-
Specifications
Control System
IQ 2020® with LCD control panel230v/50amp
60Hz Includes G.F.C.I. protected sub-panel or
115v/20amp60Hz includes G.F.C.I. protected power cord
Jet Count 19
Jets
1 XL Directional jet
2 Standard Single Rotary jets 2 Standard Directional jets 14 Directional Precision jets
(All with w/ Brushed Stainless Steel Trim)Lighting System
Raio® multi-color interior points of light (30) Exterior multi-color lighting with timer
Pumps
Wavemaster® 9000 One-Speed 2.5 HP, continuous duty 5.2 HP, breakdown torque or Wavemaster 7000 One-Speed 1.65 HP, continuous duty 3.5 HP, breakdown torque
Heater
No-Fault®, 4,000w/230v or 1,500w/115v
Ozone System
FreshWater® III Corona Discharge
Hot Tub Cover Lifter (Optional)
CoverCradle®, CoverCradle II, Lift ‘n Glide® or UpRite®
Circulation Pump
SilentFlo 5000® for quiet, continuous ltration
Effective Filtration Area
100 sq. ft., top-loading liters
Energy Efficiency
FiberCor® insulation; Certi ed to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law
Dry Weight
700 lbs.
Filled Weight
3,820 lbs.
Cover Options
3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal
Cover Color
Black - Options
-
Shell Colors: Tuscan Sun, Alpine White, Desert, Ice Grey, Platinum
Cabinet Colors: Coastal Gray, Sable, Espresso

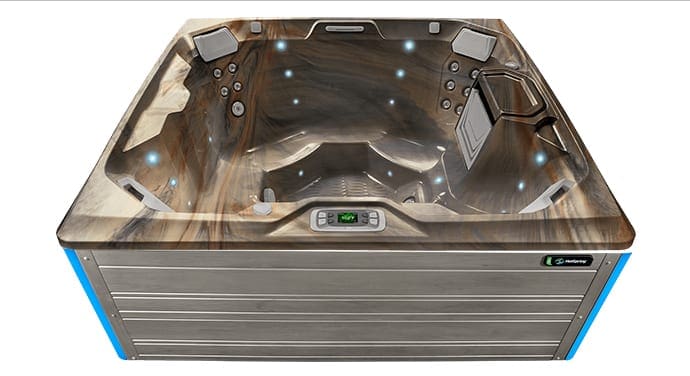

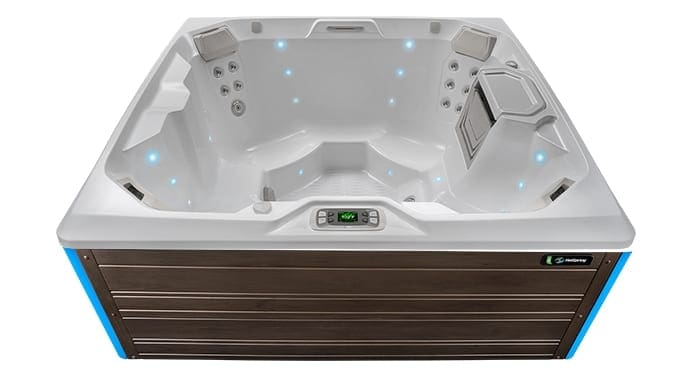

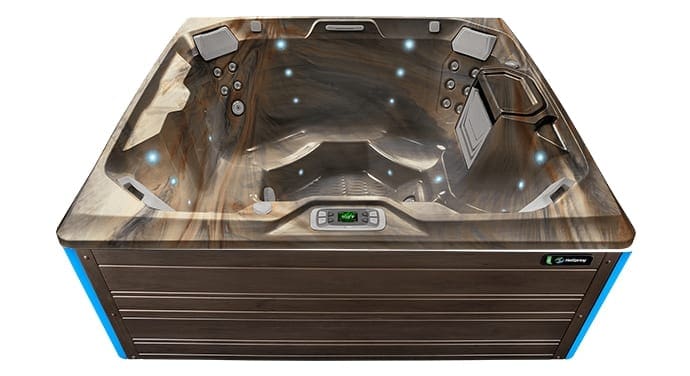

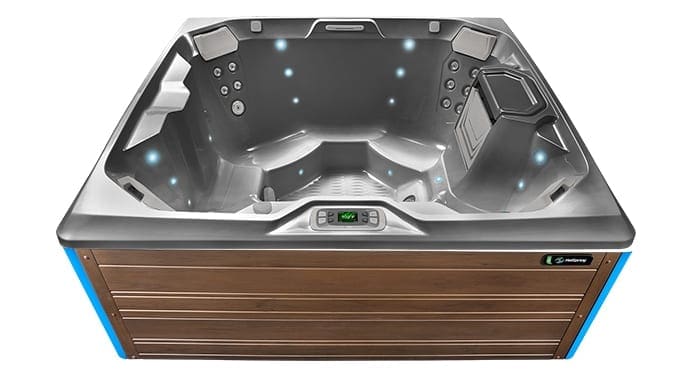

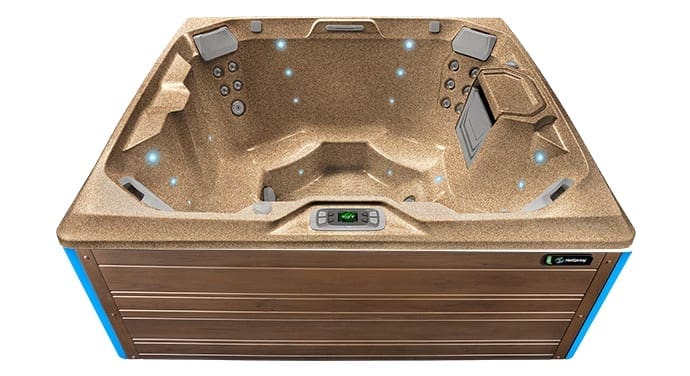

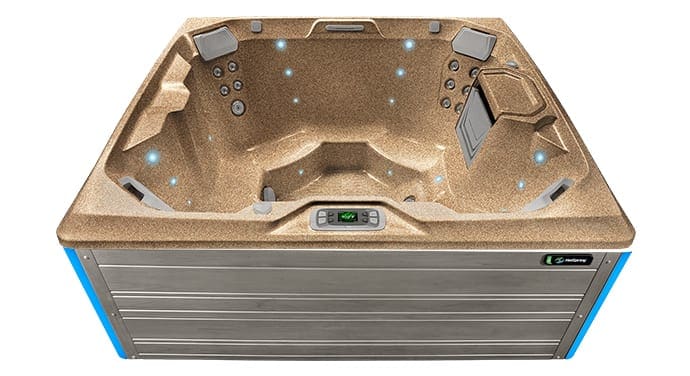

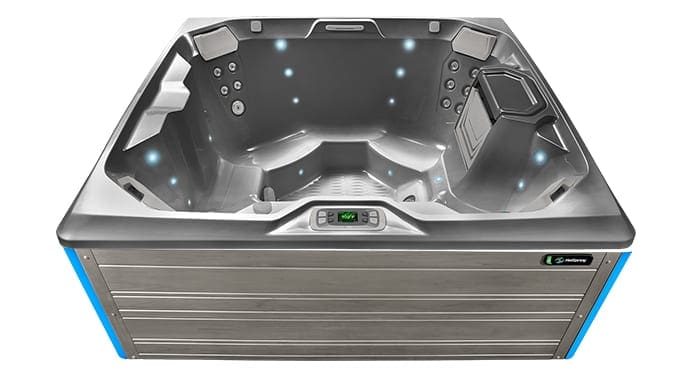

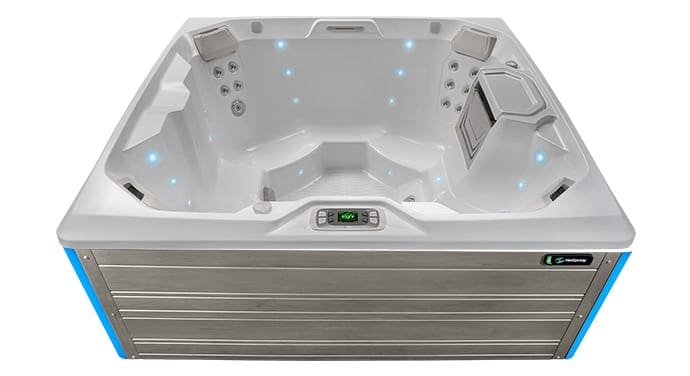

- Additional Images
-
